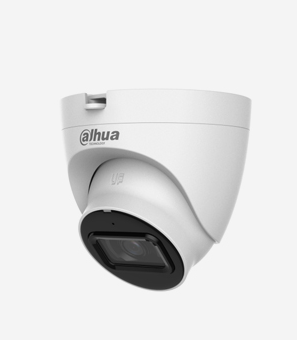

DH-HAC-HDW1801TLQ-A
4K StARLIGHT hDCVI FIXED iR QUICK-TO-INSTALL EYEBALL CAMERA
· Max. 15 fps@4K
· 120 dB true WDR, 3D NR.
· Smart IR Illumination.
· 30 m illumination distance.
· Super Adapt
· Built-in MIC (-A).
· Quick-to-install eyeball saves installation time
· 3.6 mm fixed lens (2.8 mm optional).
· CVI/CVBS/AHD/TVI switchable.
· IP67, 12 VDC

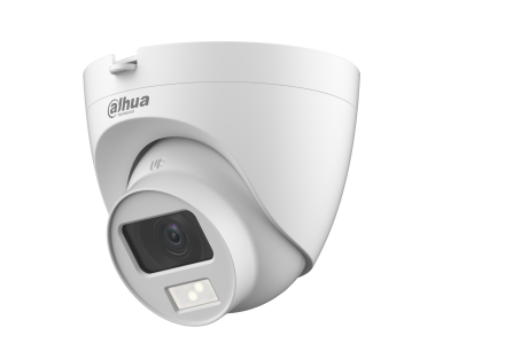

HAC-HDW1500CLQ-IL-A
5MP Smart Dual Light HDCVI Fixed-focal Quick-to-install Eyeball Camera
· Max 25 fps@5MP (16:9 video output).
· 120 dB true WDR, 3D NR.
· Smart Dual Light.
· 20 m illumination distance.
· Super Adapt
· Built-in MIC (-A).
· Quick-to-install eyeball saves installation time
· 3.6 mm fixed lens (2.8 mm optional).
· CVI/CVBS/AHD/TVI switchable.
· IP67, 12 VDC

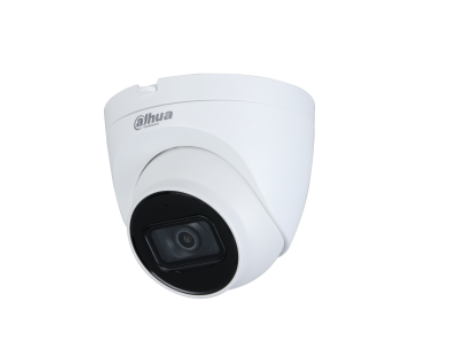

HAC-HDW1200TRQ(-A)
2MP IR HDCVI Fixed-focal Eyeball Camera
· Max. 30 fps@1080p.
· Smart IR Illumination.
· 30 m illumination distance.
· Super Adapt
· Built-in MIC (-A).
· Quick-to-install eyeball saves installation time
· 3.6 mm fixed lens (2.8 mm optional).
· CVI/CVBS/AHD/TVI switchable.
· IP50, 12 VDC

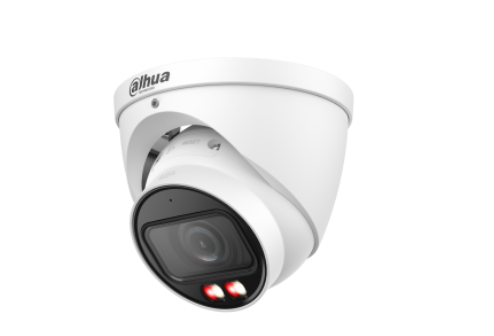

IPC-HDW3849T-ZS-IL
8MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
· 8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
· Outputs max. 8 MP (3840 × 2160)@25/30 fps.
· H.265 codec, high compression rate, ultra-low bit rate.
· Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 40 m.
· ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
· Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
· Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
· Supports max. 512 G Micro SD card; built-in Mic.
· 12 VDC/PoE power supply.
· IP67 protection.
· SMD 4.0.
· Supports AI SSA.
· SMD area can be set in warm light areas that support triggering alarms.

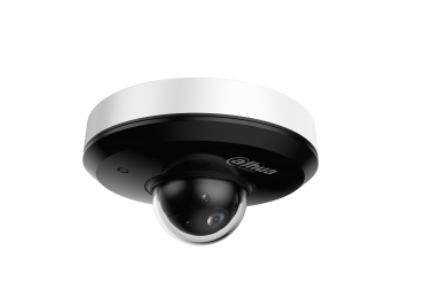

SD1A404DB-GNY
4MP 4x Starlight IR WizSense Network PTZ Camera
· 1/2.8″ 4Megapixel CMOS.
· 4x optical zoom.
· Starlight technology.
· Max. 25/30 fps@4MP.
· IR distance up to 20 m.
· Perimeter protection.
· Face detection.
· SMD 3.0.
· Built-in Mic.
· IP66; IK08.

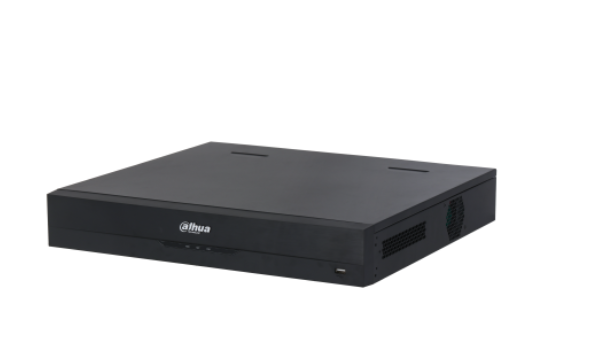

NVR5424-24P-EI
24CH 1.5U 24POE 4HDDs WizSense Network Video Recorder
· Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
· Max. decoding capability: 32 × 1080p@30 fps
· Max. 384/384/384 Mbps incoming/recording/outgoing bandwidth.
· Supports IP cameras with a resolution up to 32 MP.
· Supports AcuPick with up to 24 channels.
· AI by recorder: supports 2-channel face detection and recognition, up to 20 face databases and 20,000 face images; 4-channel perimeter protection, and 8-channel SMD Plus.
· AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
· Supports N+M cluster, ISCSI.
· Supports EPTZ, and one-click arming and disarming.
XVR5116HS-5M-I3
16CH Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
· 2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
· 16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
· 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
· 2-channel face recognition for analog channels which supports face comparison.
· 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
· Supports HDCVI, AHD, TVI, CVBS and IP video input.
· Supports up to 24-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
· Smart H.265+ and H.265 dual-stream video compression.
· IoT and POS capabilities.
